High quality hot-sale labor saving wrench ATTW-5822
- Model
- ATTW-5822
Item specifics
- Type
- Hand Tool
- Material
- 40CR
- Size
- 310MM
- Name
- shear wrench
- Other name
- high power shear wrench
- Application
- For repairment or drivers
- Features
- Widely used,hard and durable
Review
Description
Multifunctional high power shear wrench
| Specifications: | |
| Type | Hand Tool |
| Model Number | ATTW-5822 |
| Trans-speed ration | 1:56 |
| Size | 310mm |
| Main material | 40CR |
| Rated output torque | 3800 N.,M |
| Features | 1.One set wrench includes two sockets. The size of 21'',22'',24'',27'',30'',32'',33'',34'',35'',36'',38'' and 41'' are available. |
| 2.Adopts high effciency planetary shifting as main drive | |
| 3.Small dimension ,lightness,durability and large gear ration,large out-put torque | |
| 4.Made of high grade alloy steel in the process of fine heat treatment. | |
| 5.Widely used to assemble and disassemble the tyres of various heavy truck. | |
| 6.It is a necessity for repairment or drivers. | |
Direction:
1. Put the sleeve onto the square head of the handle end and the rocking bar on the other end
2. When the sleeve is put the net to be disassembled or fastened,pay attention to the direction of
lossening an tightening .Roll the rocking bar so that the handle is against the side of another bolt
tightly.
3. After the nut is unscrewed ,use the long bar to disassmble quickly.

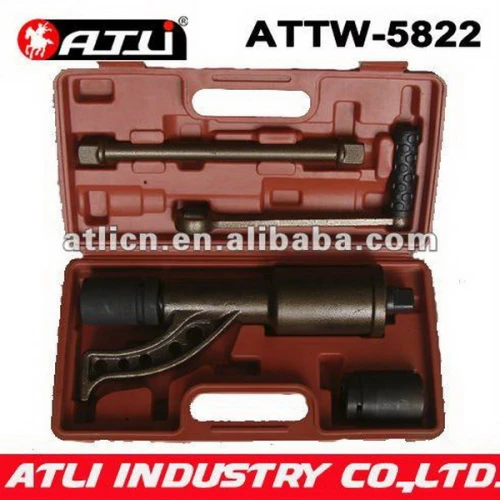

shear wrench product picture
welcome to our factory:
shear wrench
